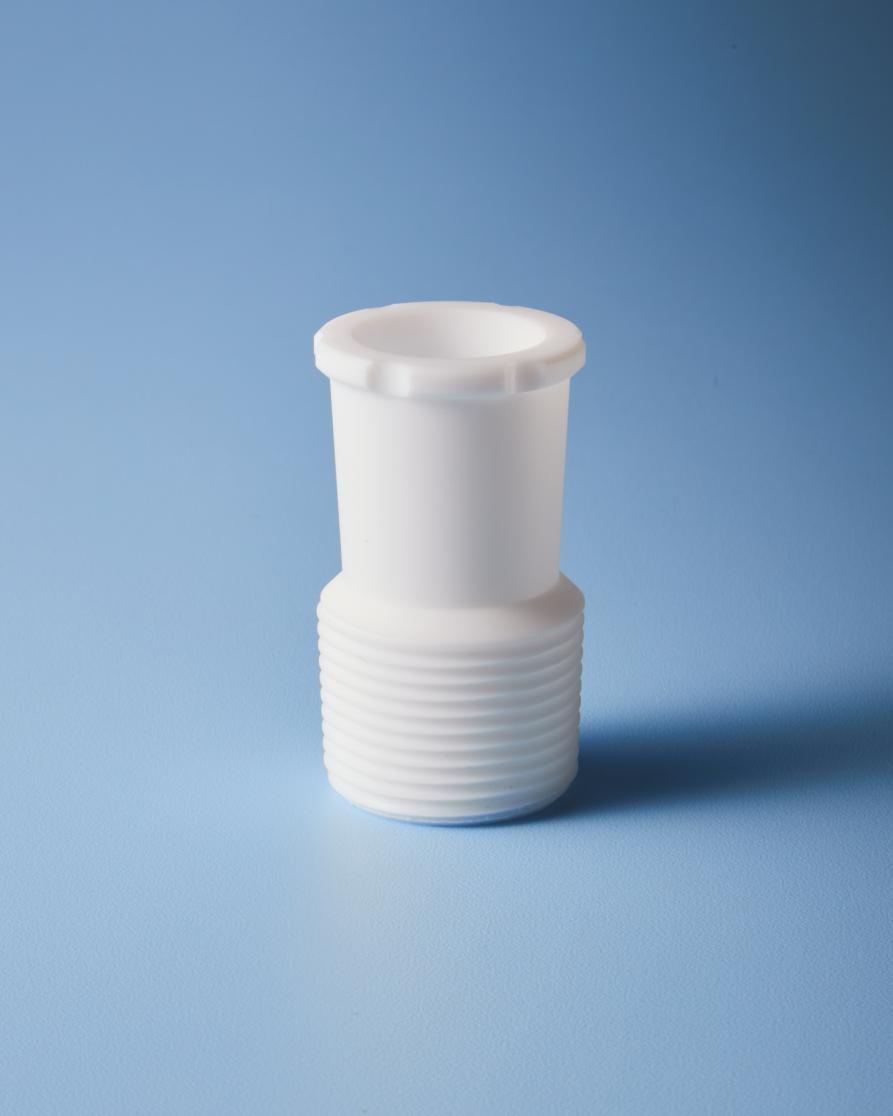

PTFE Standard Taper Joint to fit NPT Port
Standard Taper PTFE Joint Fittings with NPT screw thread for direct assembly into Cowie® PTFE Reactor Lids.
Suitable for ‘A’ and ‘B’ length tapered joints.
- Virgin grade PTFE conforming to FDA and USP Class VI.
- Chemical Resistance is virtually total.
- Temperature Range, -200°C to 260°C (-328°F to 500°F).
- Shelf life is considered indefinite within the confines of normal use and storage conditions.
- Autoclavable.
| Item Number | NPT Size | Cone Size | Height | Diameter | |
|---|---|---|---|---|---|
| PC711.1413 | 1/2" | 14/- | 45mm | 21.5mm | Contact Us |
| PC711.1913 | 1/2" | 19/- | 50mm | 27mm | Contact Us |
| PC711.2413 | 1/2" | 24/- | 67mm | 34mm | Contact Us |
| PC711.2913 | 1/2" | 29/- | 68mm | 40mm | Contact Us |
| PC711.1919 | 3/4" | 19/- | 55mm | 27mm | Contact Us |
| PC711.2419 | 3/4" | 24/- | 55mm | 34mm | Contact Us |
| PC711.2919 | 3/4" | 29/- | 68mm | 40mm | Contact Us |
| PC711.3419 | 3/4" | 34/- | 75mm | 47mm | Contact Us |
| PC711.4519 | 3/4" | 45/- | 89mm | 58mm | Contact Us |
| PC711.2425 | 1" | 24/- | 60mm | 34mm | Contact Us |
| PC711.2925 | 1" | 29/- | 60mm | 40mm | Contact Us |
| PC711.3425 | 1" | 34/- | 75mm | 47mm | Contact Us |
| PC711.4525 | 1" | 45/- | 90mm | 58mm | Contact Us |
| PC711.2438 | 1 1/2" | 24/- | 55mm | 48mm | Contact Us |
| PC711.2938 | 1 1/2" | 29/- | 55mm | 48mm | Contact Us |
| PC711.3438 | 1 1/2" | 34/- | 55mm | 48mm | Contact Us |
| PC711.4538 | 1 1/2" | 45/- | 80mm | 61mm | Contact Us |
