PTFE Reactor Lid, Self Assembly

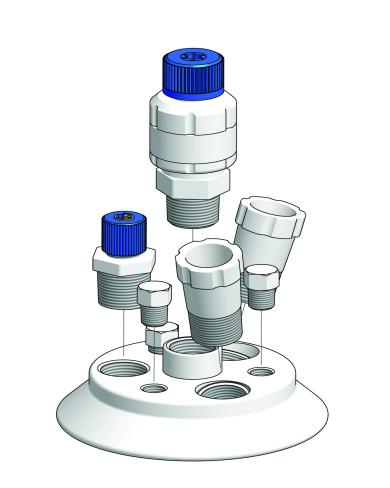

Cowie® PTFE Self Assembly Reactor Lid System provides a versatile means for assembling a range of equipment (e.g. probes and stirrers) in flat flanged reactors/vessels.
Full range of NPT screw thread Reactor Lid Fittings available.
- To fit 60/100/150/200mm Schott® / Duran® type flat flanged vessels.
- Supplied without fittings.
- Virgin grade PTFE conforming to FDA and USP Class VI.
- Chemical Resistance is virtually total.
- Durable and safe when compared to conventional glass lids.
- Customisation available.
| Item Number | Flange ID | NPT Size | Details | |
|---|---|---|---|---|
| PC705.060.003 | 60mm | 3x 1/2", 1x 1/4" | See Technical Information | Contact Us |
| PC705.060.004 | 60mm | 4x 1/2" | See Technical Information | Contact Us |
| Item Number | Flange ID | NPT Size | Details | |
|---|---|---|---|---|
| PC705.100.002 | 100mm | 1x 1", 3x 3/4", 3x 1/4" | See Technical Information | Contact Us |
| PC705.100.003 | 100mm | 5x 3/4", 1x 1/4" | See Technical Information | Contact Us |
| Item Number | Flange ID | NPT Size | Details | |
|---|---|---|---|---|
| PC705.150.002 | 150mm | 4x 1", 3x 1/2" | See Technical Information | Contact Us |
| PC705.150.003 | 150mm | 5x 1", 4x 1/2" | See Technical Information | Contact Us |
| Item Number | Flange ID | NPT Size | Details | |
|---|---|---|---|---|
| PC705.200.002 | 200mm | 3x 1 1/2", 3x 1", 2x 1/2" | See Technical Information | Contact Us |
| PC705.200.003 | 200mm | 4x 1 1/2", 2x 1", 2x 1/2" | See Technical Information | Contact Us |
